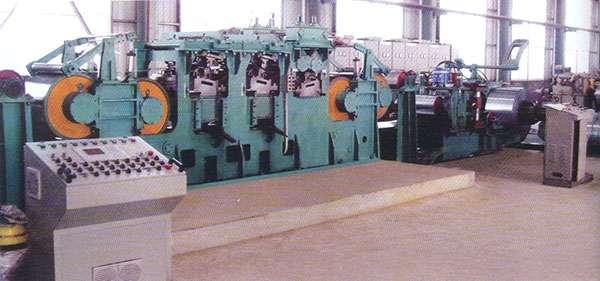

程序和功能 Applications and function
冷轧钢带通过二弯一矫,或二弯 二矫的拉弯矫直,去除冷轧板波 形态,调整性能。必要时可配静 电涂油。使板形整洁,平整。适 用普带、不锈钢带、铜铝带生产 企业。
To eliminate wave shapes and adjust functions of cold rolled coils through ways of two bending and one straightening or two bending and two straightening.If necessary,the static coating oil machine could be deployed,which can make coils clean and flat.It is applicable for enterprises who roll common steel,stainless steel,copper and alumunum coils.
工艺流程 Production Process
开卷—两辊夹送—液压剪—焊机― 入口 S辊—拉矫机—出口 S辊—涂 油机—液压剪一卷取机(浮动)
Uncoiling→two rollers transmission→hydraulic shear→welder→entry roller"S"→Bending straightening→exit roller"S"→coating oil machine→hydraulic shear→Coiler(floating)
机组规格 |
Roller length |
600 |
800 |
1000 |
1200 |
1450 |
钢带宽度 |
Strip width |
350-500 |
550-700 |
750-900 |
950-1100 |
1100-1300 |
钢带厚度 |
Strip thickness |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
延伸率 |
Extension rate |
0.5-3% |
|
