用途及功能 Applications and function
冷连轧机组与单机架相比生产效率高、自动化程度高、产品质置好、适于较高产量 的生产。根据产品特性及客户要求,我公司能提供二机架、三机架、四机架、五机 架等冷连轧组,采用了液压压下AGC、自动测厚。无头轧制、自动焊接等技术。

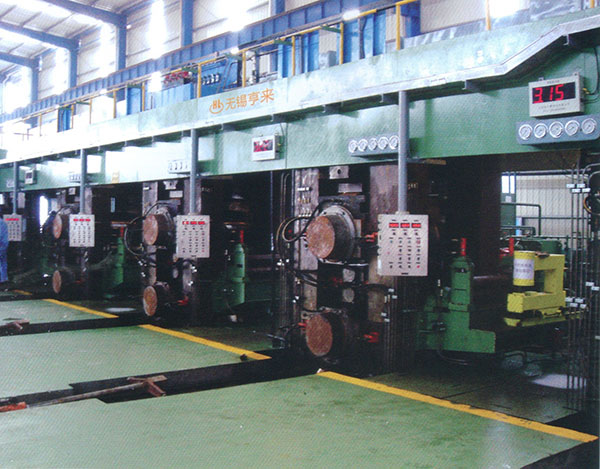

The continuous rolling mill is of several mills laid out in the line.The strips pass the mills continuously.The quantity of rolling passes equal to the quantity of mill stands.Compared with single mill,continuous rolling mill has high-efficiency,good quality and high automatic degree,so that it suits for production with high yield.We can provide two-stand cold rolling mill.three-stand cold rolling mi 11.four-stand cold rolling mill and five-stand cold rolling mill,which equipped with hydraulic screw-down AGC and automatic thickness gauge,and applied with the technology of endless rolling and automatic welding.
工艺流程 Production Process
开卷机—焊接平台(液压剪一焊机卜活套一入口平台一1#机架―测厚仪一 2#机架 —3#机架—4辨几架(测厚仪卜出口平台一液压剪—卷取机)
Pay-off reel→welding platform(hydraulic shear→welder)→looper→entry platfrom→frame No.l→Thickness gauge→frame No.2→frame No.3→frame No.4(thickness gauge)→exit platform→hydraulic shear→tension reel
工艺参数 Technical parameters
参数/机组 |
三机架 |
四机架 |
五机架 |
六机架 |
原料厚度 |
2.0-3.0mm |
2.0 〜4.0mm |
2.75 ~ 4.0mm |
2.75 -4.0mm |
成品厚度' |
0.5-1.2mm |
0.5-1.2mm |
0.5-1.2mm |
0.35 ~ 1.0mm |
大轧制速度 |
240m/min |
300~480m/min |
300-600m/min |
600m/min |
Parameter/Mill |
Three-stand Tandem |
Four-stand Tandem |
Five-stand Tandem |
Six-stand Tandem |
Material thickness |
2.0-3.0mm |
2.0 〜4.0mm |
2.75 ~ 4.0mm |
2.75 -4.0mm |
Product thickness |
0.5-1.2mm |
0.5-1.2mm |
0.5-1.2mm |
0.35 ~ 1.0mm |
Max rolling speed |
240m/min |
300~480m/min |
300-600m/min |
600m/min |
|
